Open

Open is one of the most important syscalls for filesystem. It is to open a file for later use. Looks pretty simple and straightforward, right? But it’s a little bit complex if looking at it deeperly. Today let’s dive into the detail code of it.

syscall prototype

       int open(const char *pathname, int flags);
       int open(const char *pathname, int flags, mode_t mode);

From the interface you can see clearly it opens file by the file path, plus some flags and an optional mode argument. More details about flags and mode, please refer to the man page.

function call graph

mount points

How does Linux vfs handle mount points? In the previous section, we have a big picture of function calls of open, but there is one thing left, each time we walk to a component, we can step_into() to update the nd state. But the first thing in step_into() is actually handle_mounts(), because if the current dentry is a mount point, we have to step to the root dentry of that mounted filesystem before updating the nd stuff.

static const char *step_into(struct nameidata *nd, int flags,
		     struct dentry *dentry)
{
	struct path path;
	struct inode *inode;
	int err = handle_mounts(nd, dentry, &path);

	...
	...
}

We first declare a struct path as the return info of handle_mounts().

static inline int handle_mounts(struct nameidata *nd, struct dentry *dentry,
			  struct path *path)
{
	bool jumped;
	int ret;

	path->mnt = nd->path.mnt;
	path->dentry = dentry;
	if (nd->flags & LOOKUP_RCU) {
		unsigned int seq = nd->next_seq;
		if (likely(__follow_mount_rcu(nd, path)))
			return 0;
		// *path and nd->next_seq might've been clobbered
		path->mnt = nd->path.mnt;
		path->dentry = dentry;
		nd->next_seq = seq;
		if (!try_to_unlazy_next(nd, dentry))
			return -ECHILD;
	}
	ret = traverse_mounts(path, &jumped, &nd->total_link_count, nd->flags);
	if (jumped) {
		if (unlikely(nd->flags & LOOKUP_NO_XDEV))
			ret = -EXDEV;
		else
			nd->state |= ND_JUMPED;
	}
	if (unlikely(ret)) {
		dput(path->dentry);
		if (path->mnt != nd->path.mnt)
			mntput(path->mnt);
	}
	return ret;
}

handle_mounts() does this:

Let’s look into the rcu lookup:

static bool __follow_mount_rcu(struct nameidata *nd, struct path *path)
{
	struct dentry *dentry = path->dentry;
	unsigned int flags = dentry->d_flags;

	if (likely(!(flags & DCACHE_MANAGED_DENTRY)))
		return true;

	if (unlikely(nd->flags & LOOKUP_NO_XDEV))
		return false;

	for (;;) {
		/*
		 * Don't forget we might have a non-mountpoint managed dentry
		 * that wants to block transit.
		 */
		if (unlikely(flags & DCACHE_MANAGE_TRANSIT)) {
			int res = dentry->d_op->d_manage(path, true);
			if (res)
				return res == -EISDIR;
			flags = dentry->d_flags;
		}

		if (flags & DCACHE_MOUNTED) {
			struct mount *mounted = __lookup_mnt(path->mnt, dentry);
			if (mounted) {
				path->mnt = &mounted->mnt;
				dentry = path->dentry = mounted->mnt.mnt_root;
				nd->state |= ND_JUMPED;
				nd->next_seq = read_seqcount_begin(&dentry->d_seq);
				flags = dentry->d_flags;
				// makes sure that non-RCU pathwalk could reach
				// this state.
				if (read_seqretry(&mount_lock, nd->m_seq))
					return false;
				continue;
			}
			if (read_seqretry(&mount_lock, nd->m_seq))
				return false;
		}
		return !(flags & DCACHE_NEED_AUTOMOUNT);
	}
}

#define DCACHE_MANAGED_DENTRY \
	(DCACHE_MOUNTED|DCACHE_NEED_AUTOMOUNT|DCACHE_MANAGE_TRANSIT)


/*
 * find the first mount at @dentry on vfsmount @mnt.
 * call under rcu_read_lock()
 */
struct mount *__lookup_mnt(struct vfsmount *mnt, struct dentry *dentry)
{
	struct hlist_head *head = m_hash(mnt, dentry);
	struct mount *p;

	hlist_for_each_entry_rcu(p, head, mnt_hash)
		if (&p->mnt_parent->mnt == mnt && p->mnt_mountpoint == dentry)
			return p;
	return NULL;
}

The lookup is clear, we use the parent mnt and the mounted dentry as parameters to get a hash value to locate the index in the globalMountCache and then find the target mount in the collision list.

static inline struct hlist_head *m_hash(struct vfsmount *mnt, struct dentry *dentry)
{
	unsigned long tmp = ((unsigned long)mnt / L1_CACHE_BYTES);
	tmp += ((unsigned long)dentry / L1_CACHE_BYTES);
	tmp = tmp + (tmp >> m_hash_shift);
	return &mount_hashtable[tmp & m_hash_mask];
}

The above case happens when you mount multiple fs to same path for example:

mount /dev/sda /mnt/test
mount /dev/sdb /mnt/test

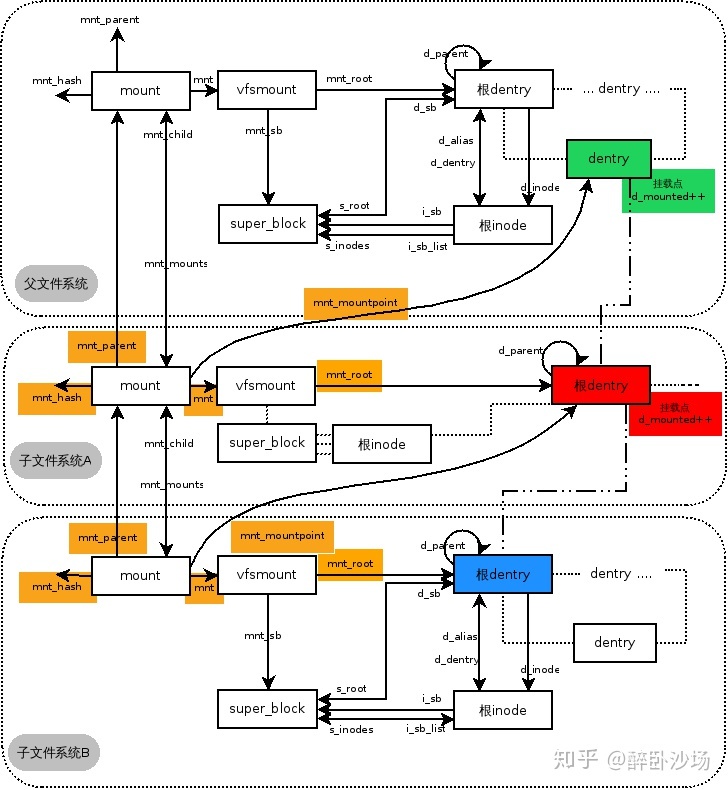

This way the finally found dentry is the root dentry of fs on sdb, because the mount relationship will be like this: (Here I borrow a picture from web)

mount_points

traverse_mounts()

__follow_mount_rcu() doesn’t handle automount dentry. It is left to traverse_mounts

The first half code of it is similar with __follow_mount_rcu(), the different part is it handles DCACHE_NEED_AUTOMOUNT case (recursively I think).

static int __traverse_mounts(struct path *path, unsigned flags, bool *jumped,
			     int *count, unsigned lookup_flags)
{
	struct vfsmount *mnt = path->mnt;
	bool need_mntput = false;
	int ret = 0;

	while (flags & DCACHE_MANAGED_DENTRY) {
		...
		...
		...

		if (flags & DCACHE_MOUNTED) {	// something's mounted on it..
			struct vfsmount *mounted = lookup_mnt(path);
			if (mounted) {		// ... in our namespace
				...
				...
				...
				need_mntput = true;
				continue;
			}
		}

		if (!(flags & DCACHE_NEED_AUTOMOUNT))
			break;

		// uncovered automount point
		ret = follow_automount(path, count, lookup_flags);
		flags = smp_load_acquire(&path->dentry->d_flags);
		if (ret < 0)
			break;
	}

	...
	...
	...

	*jumped = need_mntput;
	return ret;
}
